How to use an ASI1210MC-S as a guide camera with N.I.N.A.

VRd3L9z7

I have a Celestron CPC-800 with a Celestron C-90 (1980's model) mounted on top. I have an ASI120MC-S connected to the C-90 and I want to use C-90/ASI120 as my auto guide scope.

THe CPC-800 is connected to NINA through the Celestron WiFi adapter. The ASi120 guide port is connected to the guide port on the CPC-800. The USB 3.0 port on the ASI120 is connected directly to the laptop.

ASI Studio can see the ASI120.

I have loaded all of the ASCOM drivers from the ZWO website.

How do I get NINA to see and use the ASI as the auto guide scope?

Thank you,

        Mike

Tech@ZWO

In the first your ASI120 need to connect PHD2 and then you choose the ”PHD2“ in NINA Guider: https://www.youtube.com/watch?v=oHLqvGKtsDo

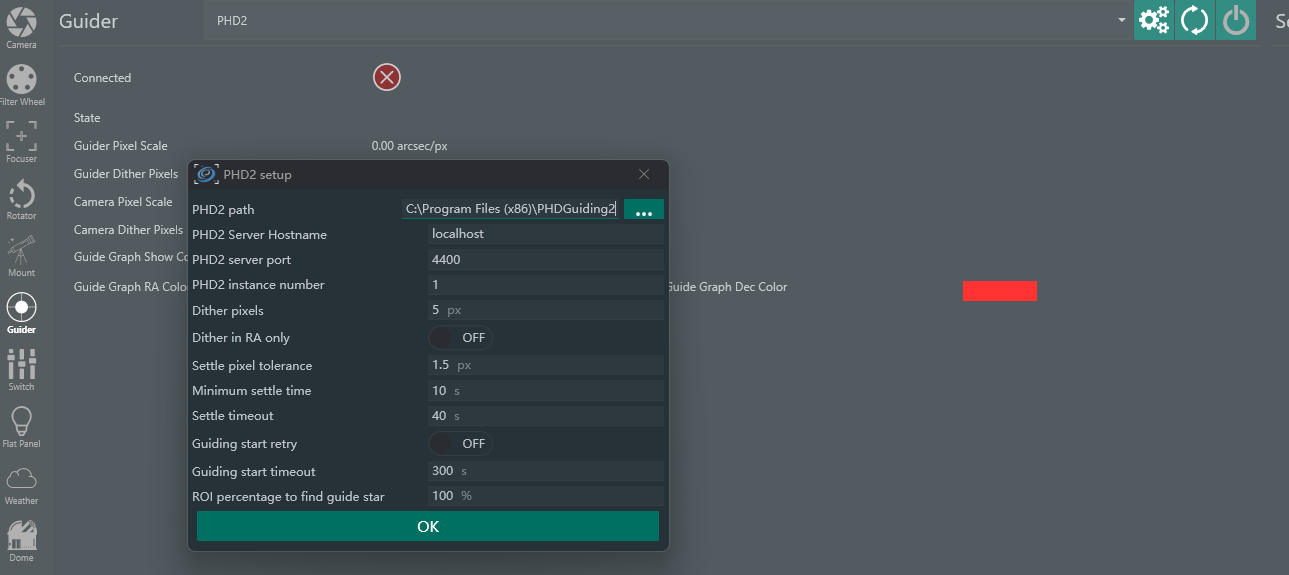

In NINA, the PHD2 path needs to point to the directory where your PHD2 executable (.exe) file is installed.
