ASI mount ASCOM driver bug????

K4aK1OfE

trying to control my AM5 via NINA. have downloaded all recent software and drivers. updated mount firmware as well.
problem- ASI ASCOM driver will not show local coordinate, and will not accept manual entry in any possible format. was advised to adjust Locale and adjust "." and "," where required under extra settings.
nothing works.

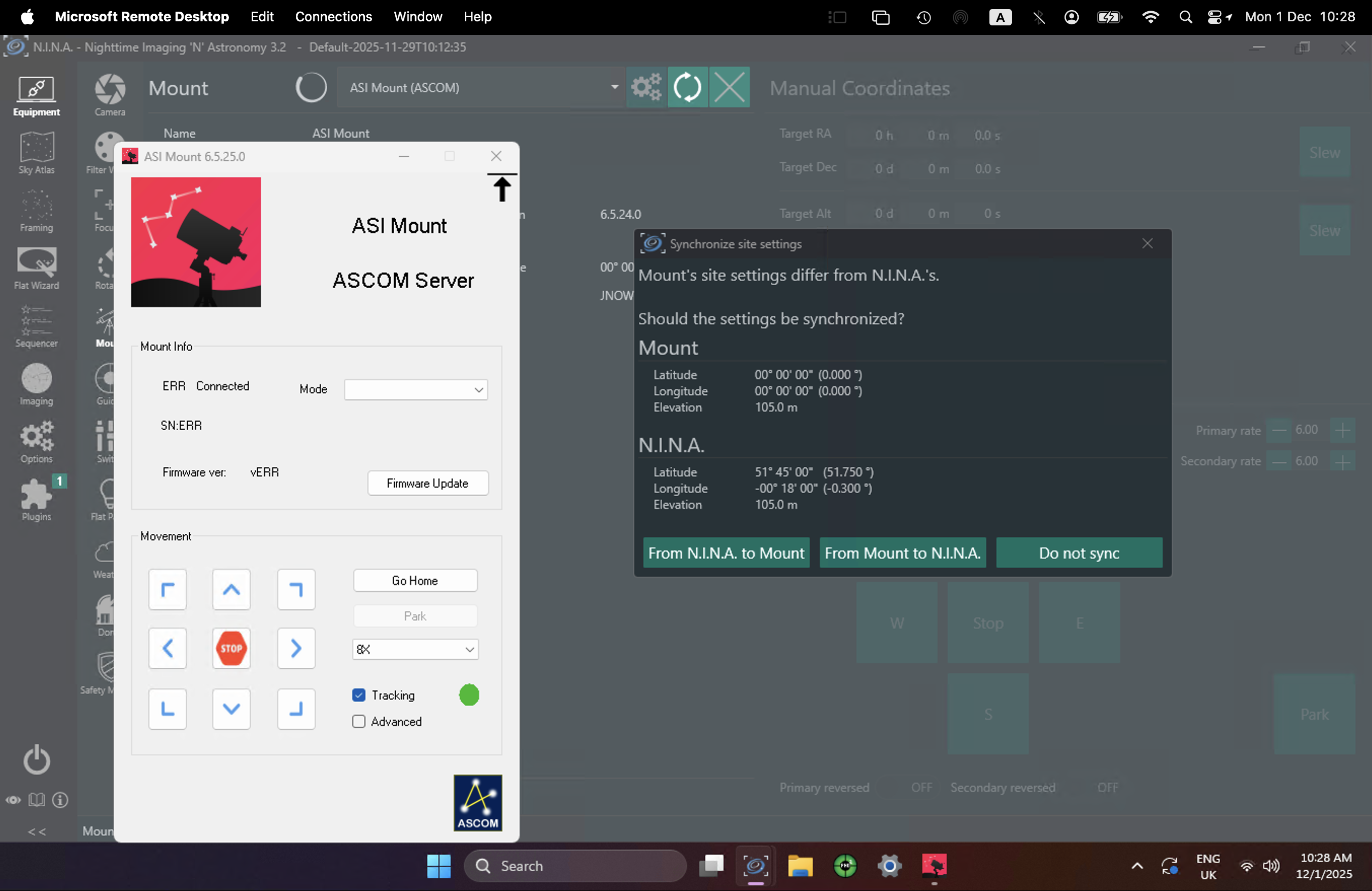

tried to get NINA to sync coordinates to mount- it will only accept altitude
every research ends up with a "known bug in ASI ASCOM" ??????????
help!!!!!!!
thanks

Support@Seestar

It looks like the error is caused by a missing or incompatible Microsoft .NET Framework on your PC. Please download and install the latest version from https://dotnet.microsoft.com/download/dotnet-framework
, then restart your computer and try running the ASI Mount software again.
Alternatively, you can reinstall the system.

K4aK1OfE

f8dk07HY

K4aK1OfE

f8dk07HY

I have the same problem. Please find us a solution

K4aK1OfE

is there really no one at ZWO that can dedicate some time to answer difficult questions? ZWO team- your reputation in custom services is not great, will you do somthing about it?
thanks

K4aK1OfE

Support@Seestar i have win 11 that was just updated. the link you sent has the lates framework version form 2022. can it be that i still have an old version?
further- is the coordinate format i put into NINA is correct

thanks

f8dk07HY

Support@Seestar the fact is that everything was working fine before this update. I can't believe it is a .net problem. My PC is up to date, so I guess it is the wrong way. Could be a country parameter, like using , instead of . ???

K4aK1OfE

PSChildName Version release

v2.0.50727 2.0.50727.4927

v3.0 3.0.30729.4926

Windows Presentation Foundation 3.0.6920.4902

v3.5 3.5.30729.4926

Client 4.8.09221 533509

Full 4.8.09221 533509

Client 4.0.0.0

The output you provided is from the PowerShell command used to check the installed .NET Framework versions on your system.

Based on this output, here is a breakdown of the versions installed:

📋 Installed .NET Framework Versions
You have the following major versions of the .NET Framework installed:

.NET Framework Version PSChildName Version Details Key Info
2.0 SP2 v2.0.50727 2.0.50727.4927 The original core runtime.
3.0 SP2 v3.0 3.0.30729.4926 Adds features like WPF, WCF, Workflow, and CardSpace.
3.5 SP1 v3.5 3.5.30729.4926 Includes .NET Framework 2.0 and 3.0, plus features like LINQ and ADO.NET Data Services.
4.8 Full and Client 4.8.09221 This is the most recent version of the traditional .NET Framework.
Details on Version 4.x
The presence of the Full and Client entries with a release value of 533509 confirms the installation of .NET Framework 4.8.

Release DWORD Value .NET Framework Version
≥528040 4.8 (The installed version)
🤔 Summary
Your system is running .NET Framework 4.8 (the latest version of the traditional Framework) along with the older versions 3.5 SP1 (which includes 2.0 and 3.0). This configuration is common, as many legacy applications still require versions 3.5 or older.

K4aK1OfE

i need more advice-please check if the location i entered to NINA is in the correct format.
OR do i need to enter it manually directly in the ASCOM driver advanced settings and if so in which format??
many thanks

F5146666

K4aK1OfE

Did you ever connect your AM5 via ASI Mount ASCOM to your PC before? How do you connect your mount with ASCOM? If it does not connect to your mount over the correct port of the USB-/WIFI or BT-Connection, it makes no sense to try it over NINA.

I am connecting my AM5N over USB connection to ASCOM on my PC running NINA with Win 11. I do not have any problems so far.

K4aK1OfE

F5146666
up until now i was using ASIair never needed to connect to pc
moving to nina as i am changing to touptek camera.

good to know that you have no issues and would be greatlyb appreciated if you can please post screenshots similar to the ones i uploaded so i can appreciate how it looks on a working machine
thanks

K4aK1OfE

f8dk07HY tried that, couldn't resolve it.
i need someone that has NINA and ASI mount to show how they set the connectio

F5146666

K4aK1OfE

OK. Then you might have a general problem here, if ASCOM did not work for you until now.

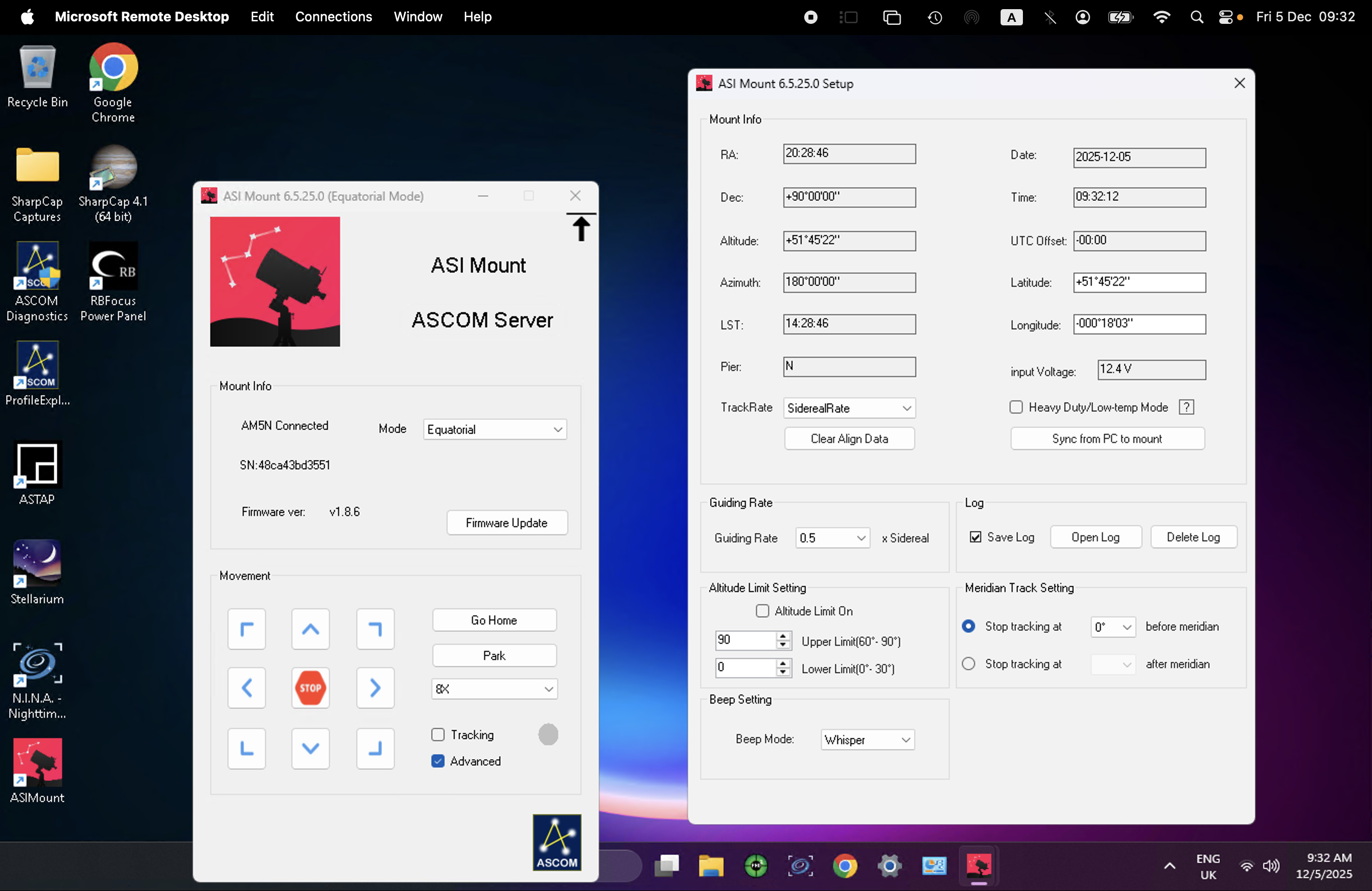

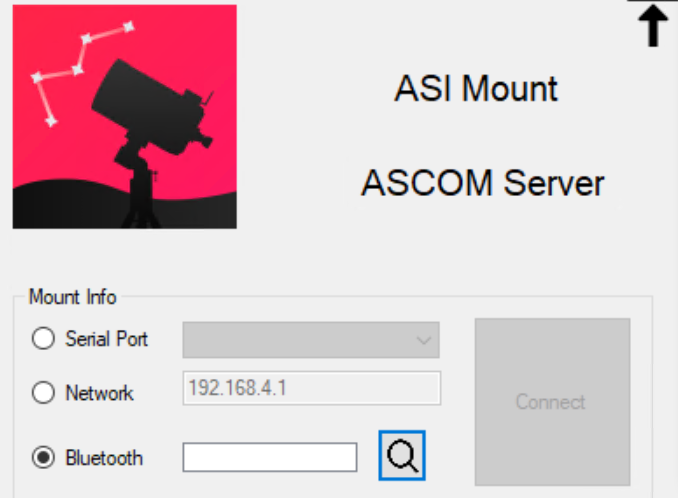

It is an older screenshot of my ASCOM setup:

In this screenshot I deleted Altitude, Latitude und Longitude for obvious reasons.

But maybe again: How do you connect to your AM5? USB, WIFI, BT? What Settings do you use here:

You need to start and get the ASI Mount ASCOM Server App without NINA to connect to your mount, otherwise NINA is not able to use it to connect to your mount too.

f8dk07HY

I have found the solution : you have to update also ASCOM driver. You have now an unpack button which block every action before unpacking.

K4aK1OfE

f8dk07HY
thanks i as said i have downloaded the recent ASCOM from ZWO site a few times now. i cannot see an unpack button anywhere. after download i have a usuel exe file to install then just follow instruction

can you please send a screenshot?
thasnks

K4aK1OfE

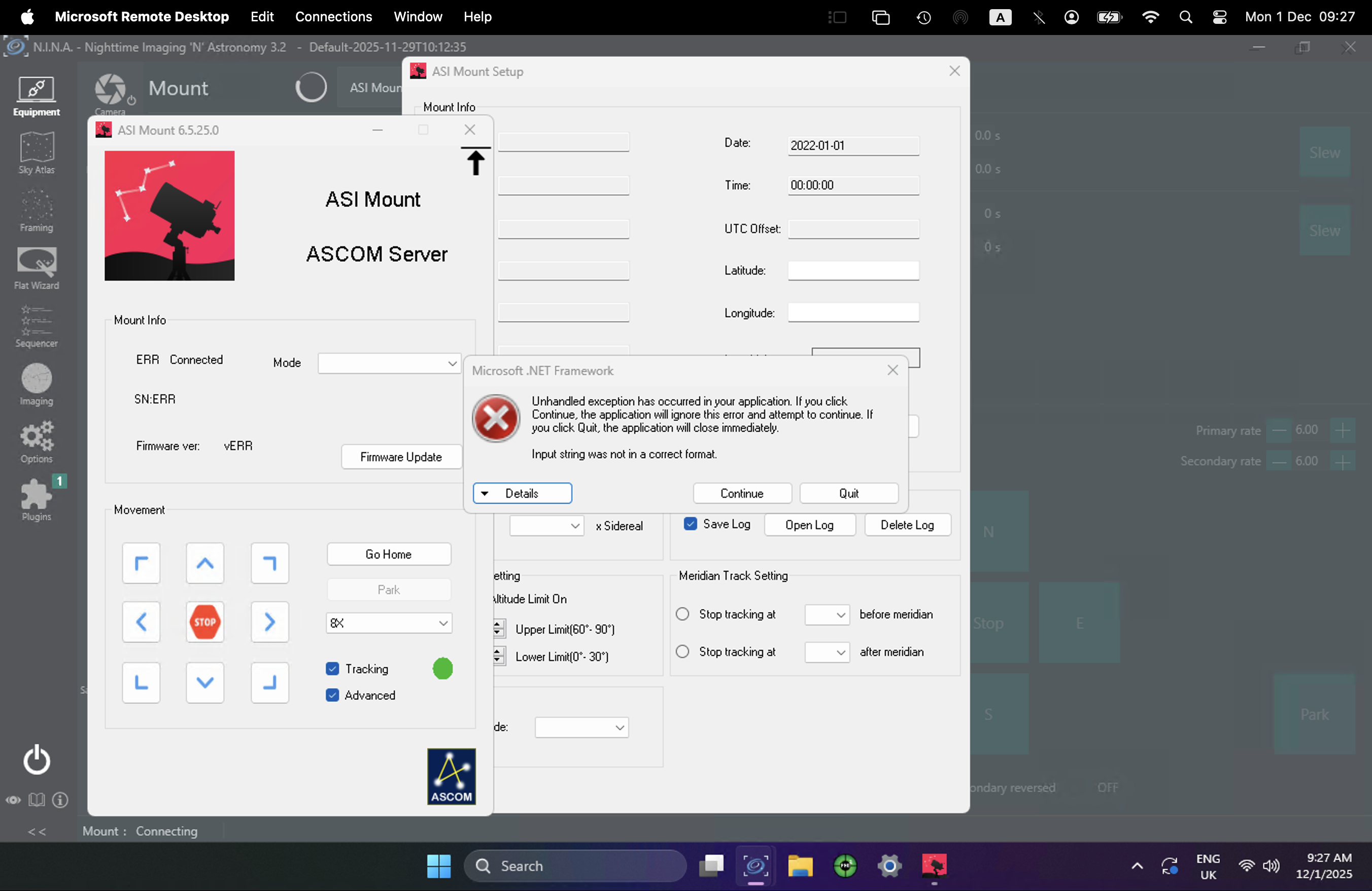

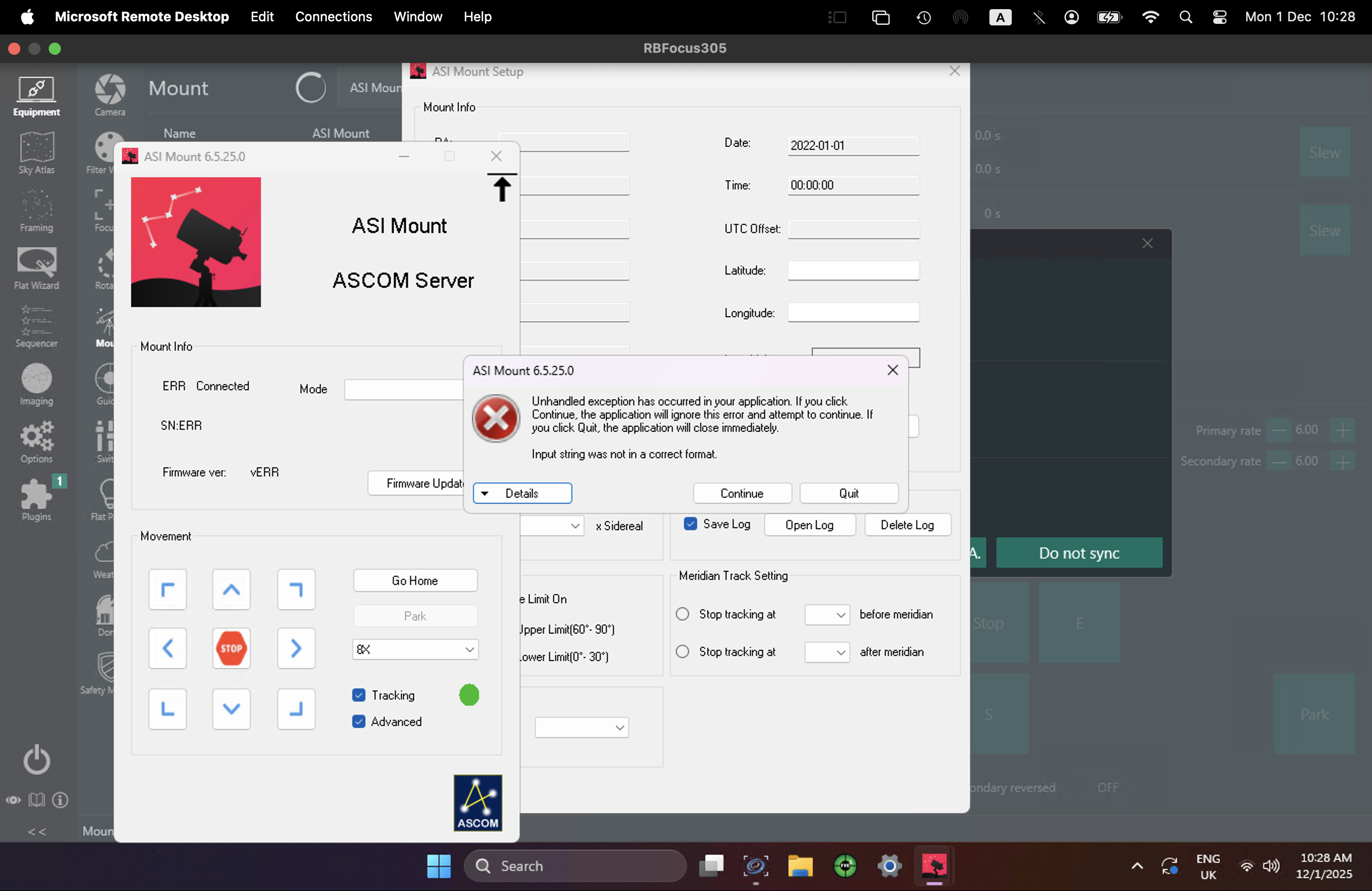

here is the message that comes in the exception window
See the end of this message for details on invoking
just-in-time (JIT) debugging instead of this dialog box.

************** Exception Text **************
System.FormatException: Input string was not in a correct format.
at System.Number.StringToNumber(String str, NumberStyles options, NumberBuffer& number, NumberFormatInfo info, Boolean parseDecimal)
at System.Number.ParseInt32(String s, NumberStyles style, NumberFormatInfo info)
at ASCOM.ASIMount.FormSetupDialog.SetUI(CMD_ACTION action, String strData)
at ASCOM.ASIMount.FormSetupDialog.GetInitValue()
at ASCOM.ASIMount.FormSetupDialog.InitUI()
at ASCOM.ASIMount.FormSetupDialog.timerSingleShot_Tick(Object sender, EventArgs e)
at System.Windows.Forms.Timer.OnTick(EventArgs e)
at System.Windows.Forms.Timer.TimerNativeWindow.WndProc(Message& m)
at System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)

************** Loaded Assemblies **************
mscorlib
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9221.0 built by: NET481REL1LAST_25H2

CodeBase: file:///C:/Windows/Microsoft.NET/Framework64/v4.0.30319/mscorlib.dll

ASCOM.ASIMount.Server
Assembly Version: 6.5.25.0
Win32 Version: 6.5.25

CodeBase: file:///C:/Program%20Files%20(x86)/Common%20Files/ASCOM/ZWO/ASIMount/ASCOM.ASIMount.Server.exe

System
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9321.0 built by: NET481REL1LAST_25H2_B

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System/v4.0_4.0.0.0__b77a5c561934e089/System.dll

System.Windows.Forms
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9221.0 built by: NET481REL1LAST_25H2

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms/v4.0_4.0.0.0__b77a5c561934e089/System.Windows.Forms.dll

System.Drawing
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9221.0 built by: NET481REL1LAST_25H2

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Drawing/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Drawing.dll

ASCOM.Attributes
Assembly Version: 6.0.0.0
Win32 Version: 7.1.0.4707

CodeBase: file:///C:/WINDOWS/assembly/GAC_MSIL/ASCOM.Attributes/6.0.0.0__565de7938946fba7/ASCOM.Attributes.dll

ASCOM.ASIMount.Telescope
Assembly Version: 6.5.24.0
Win32 Version: 6.5.24.0

CodeBase: file:///C:/Program%20Files%20(x86)/Common%20Files/ASCOM/ZWO/ASIMount/ASCOM.ASIMount.Telescope.DLL

ASCOM.DeviceInterfaces
Assembly Version: 6.0.0.0
Win32 Version: 7.1.0.4707

CodeBase: file:///C:/WINDOWS/assembly/GAC_MSIL/ASCOM.DeviceInterfaces/6.0.0.0__565de7938946fba7/ASCOM.DeviceInterfaces.dll

ASCOM.Utilities
Assembly Version: 6.0.0.0
Win32 Version: 7.1.0.4707

CodeBase: file:///C:/WINDOWS/assembly/GAC_MSIL/ASCOM.Utilities/6.0.0.0__565de7938946fba7/ASCOM.Utilities.dll

System.Core
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9319.0 built by: NET481REL1LAST_25H2_B

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Core/v4.0_4.0.0.0__b77a5c561934e089/System.Core.dll

Microsoft.VisualBasic
Assembly Version: 10.0.0.0
Win32 Version: 14.8.9221.0 built by: NET481REL1LAST_25H2

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/Microsoft.VisualBasic/v4.0_10.0.0.0__b03f5f7f11d50a3a/Microsoft.VisualBasic.dll

InTheHand.Net.Personal
Assembly Version: 3.5.605.0
Win32 Version: 3.5.605.0

CodeBase: file:///C:/Program%20Files%20(x86)/Common%20Files/ASCOM/ZWO/ASIMount/InTheHand.Net.Personal.DLL

System.Xml
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9221.0 built by: NET481REL1LAST_25H2

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll

System.Configuration
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9221.0 built by: NET481REL1LAST_25H2

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Configuration/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Configuration.dll

Newtonsoft.Json
Assembly Version: 13.0.0.0
Win32 Version: 13.0.3.27908

CodeBase: file:///C:/Program%20Files%20(x86)/Common%20Files/ASCOM/ZWO/ASIMount/Newtonsoft.Json.DLL

System.Numerics
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9221.0 built by: NET481REL1LAST_25H2

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Numerics/v4.0_4.0.0.0__b77a5c561934e089/System.Numerics.dll

ASCOM.Astrometry
Assembly Version: 6.0.0.0
Win32 Version: 7.1.0.4707

CodeBase: file:///C:/WINDOWS/assembly/GAC_MSIL/ASCOM.Astrometry/6.0.0.0__565de7938946fba7/ASCOM.Astrometry.dll

LibBle
Assembly Version: 1.0.0.0
Win32 Version: 1.0.0.0

CodeBase: file:///C:/Program%20Files%20(x86)/Common%20Files/ASCOM/ZWO/ASIMount/LibBle.DLL

Windows.Devices
Assembly Version: 255.255.255.255
Win32 Version: 10.0.10011.16384

CodeBase: file:///C:/WINDOWS/system32/WinMetadata/Windows.Devices.winmd

System.Runtime
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9221.0

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Runtime/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Runtime.dll

Windows.Foundation
Assembly Version: 255.255.255.255
Win32 Version: 10.0.10011.16384

CodeBase: file:///C:/WINDOWS/system32/WinMetadata/Windows.Foundation.winmd

System.Runtime.InteropServices.WindowsRuntime
Assembly Version: 4.0.0.0
Win32 Version: 4.8.9221.0

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Runtime.InteropServices.WindowsRuntime/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Runtime.InteropServices.WindowsRuntime.dll

ASCOM.Exceptions
Assembly Version: 6.0.0.0
Win32 Version: 7.1.0.4707

CodeBase: file:///C:/WINDOWS/assembly/GAC_MSIL/ASCOM.Exceptions/6.0.0.0__565de7938946fba7/ASCOM.Exceptions.dll

Anonymously Hosted DynamicMethods Assembly
Assembly Version: 0.0.0.0
Win32 Version: 4.8.9221.0 built by: NET481REL1LAST_25H2

CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_64/mscorlib/v4.0_4.0.0.0__b77a5c561934e089/mscorlib.dll

************** JIT Debugging **************
To enable just-in-time (JIT) debugging, the .config file for this
application or computer (machine.config) must have the
jitDebugging value set in the system.windows.forms section.
The application must also be compiled with debugging
enabled.

For example:

When JIT debugging is enabled, any unhandled exception
will be sent to the JIT debugger registered on the computer
rather than be handled by this dialog box.

K4aK1OfE

and i still wonder about these three error messages on the driver "MOUNT INFO"

ASIMount-ZWO

K4aK1OfE Please wait a moment. Our engineer is checking this issue

K4aK1OfE

ZWO support team can you look at the messages above- apparently no one knows how to solve this

K4aK1OfE

probelm solved - all i needed to do was to connect the mount to a different USB on the mini PC. thanks everyone[upl-i
