How to connect M54 filter drawer to the ASI 2600 MC Pro tilt plate ??

philippe

Ok,

I eventually came across the explanation on the M54 15mm adapter page:

https://astronomy-imaging-camera.com/product/zwo-m54-adapter-replacing-efw

I saw how to attach it to the camera side !

However, is this impossible to use the M54 tilt plate and attach it to the camera ?

Philippe

Tech@ZWO

philippe If you have 55mm back focus requirement, you can't use the M54 tilt plate to replace the M42 tilt plate on the camera, because the back focus distance will reach 60mm. because you also need a 5mm tilt plate to connect the OAG-L to the telescope.

philippe

Hello,

Oops, you're definitely right, I had forgotten to take into account the total and didn't notice that we were already over the 55mm ! :-(

I was used to standard OAG version and of course we don't need the tilt plate to connect to the telescope, therefore I had the usual elements in mind after the OAG and it was within the 55mm with it included...

So it's now crystal clear, I'll have to buy the 15mm adapter but alas, it'll be less comfortable to change my filter, but I've no other choice at the moment...

Thanks for your explanation.

Philippe

sreesha

philippe I have same challenge. Which 15mm adapter solved ur problem? Can you pls share the link. Thanks.,

Figzphotos

sreesha I also have this same problem. Why doesn't ZWO make a 1mm tilt plate for the people that have this same exact imaging train?

Tech@ZWO

Figzphotos

sreesha
Do you mean this part?
https://www.zwoastro.com/product/zwo-70mm-diameter-m54-adapter-for-oag-l-and-asi-dso-cameras/

Figzphotos

My question is what is the point of selling a filter draw that you can attach to your ASI 2600MC camera and OAG-L if you want me to buy another spacer that you can screw in a filter? Why offer that option?

Tech@ZWO

Figzphotos M68 OAG is different from OAG-L.
M68 OAG has M68 threads on the telescope side. but OAG-L does not have it, it needs an extra 5mm filter to connect to the telescope, in this case, 20mm filter drawer is not compatible with OAG-L for 55mm back focus solution.

Figzphotos

So why is it offered this way???? Even the diagram shows 17.5mm + 20mm + 17.5 = 55mm. Why have this as an option if you still need to add a 5mm plate??

Tech@ZWO

Figzphotos This connection way is for M68 OAG, not OAG-L.

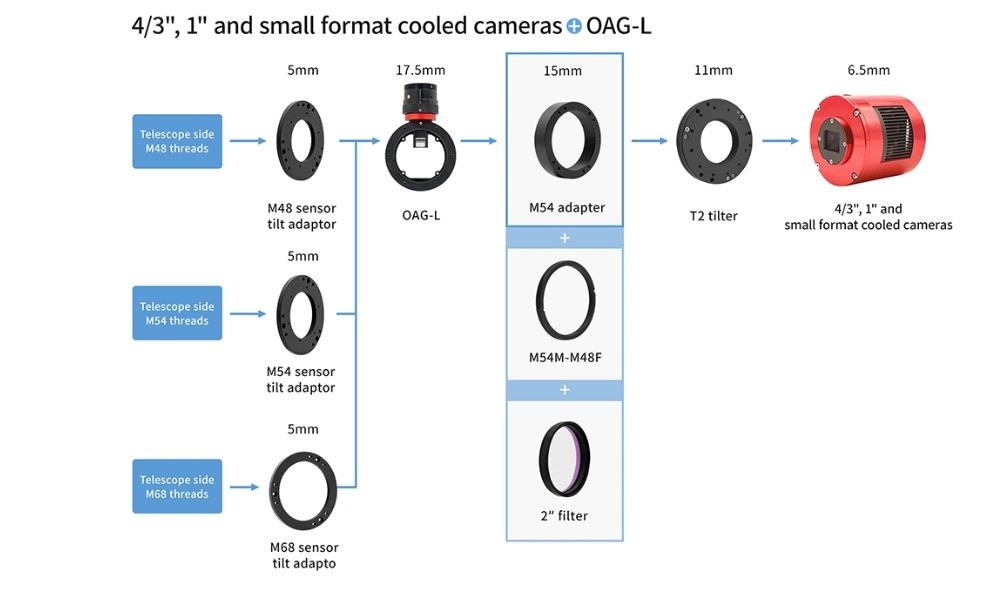

You can refer to this pic if you own OAG-L.

Figzphotos

Ohhhhhhhhhhhhhh. Ok. My mistake. My apologies.

Tech@ZWO

Figzphotos It's ok, i also forwarded to our team to see if we can make it more clear.

Clear skies.
