Focus Issue with ASI 174 mini and OAG-L

surfinash

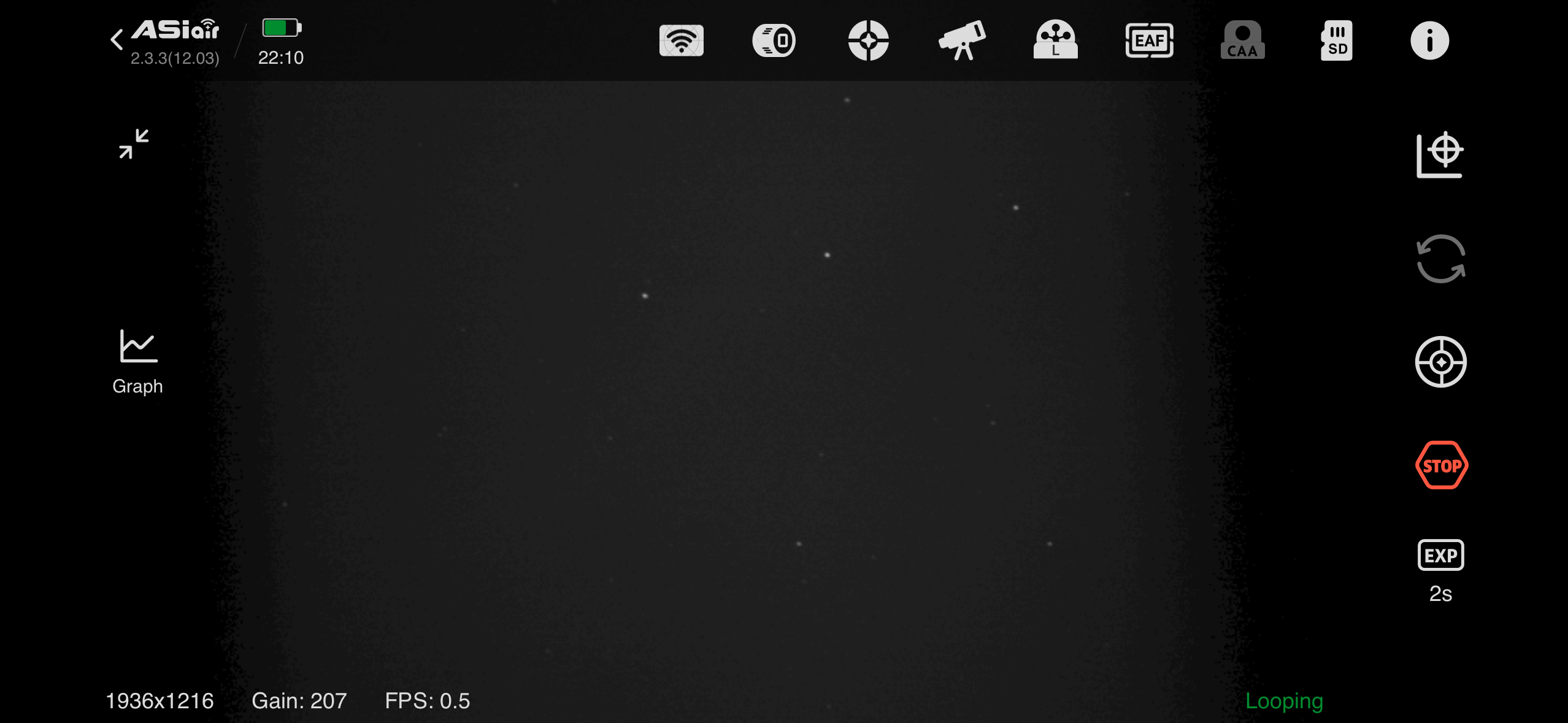

Hello - I have a slightly different challenge. I got my 174MM mini yesterday and was testing it. Focus was excellent, however, I noticed the dark vignetting / clipping on the vertical edges on the side (please see the image). Any ideas on what may be causing this? I am using OAG-L.

Here is the gear:

Williams Optics FLT-132 with Flat-8 reducer / flattener (camera side M48 opening)
OAG-L + EFW (7x2) + ASI 2600MM

Tech@ZWO

surfinash rotate the guide camera to make sure the sensor's long side align to the prism's long side. you can check it before insert the guide camera.

Tech@ZWO

Lymelight
Do not need to move too much, align the prism edge to the main sensor's long side, and move up a little bit.
Then, insert the guide camera to the end and adjust the OAG-L helical focuser to get focus. you
